"VisionTech Pro: 8MP 4K CCTV Security Camera Tester with 5-Inch TFT LCD Monitor - The Ultimate Tool for TVI, AHD, CVI, and Analog Systems"
"VisionTech Pro: 8MP 4K CCTV Security Camera Tester with 5-Inch TFT LCD Monitor - The Ultimate Tool for TVI, AHD, CVI, and Analog Systems"
Couldn't load pickup availability
Elevate your security installation and maintenance capabilities with the VisionTech Pro, an advanced 8MP 4K CCTV Security Camera Tester designed to streamline the setup, testing, and troubleshooting of TVI, AHD, CVI, and Analog security camera systems. This compact yet powerful device is equipped with a vibrant 5-inch TFT LCD monitor, offering crystal-clear visuals and ensuring that every pixel is accounted for in your security setup.
Key Features:
- Superior Resolution Support: With support for up to 8MP 4K resolution, the VisionTech Pro allows for the testing and calibration of the latest high-definition CCTV cameras, ensuring your security system delivers unparalleled image quality.
- Versatile Compatibility: Whether you're working with the latest TVI, AHD, CVI, or traditional analog cameras, this tester has you covered. Its 4-in-1 functionality makes it a must-have tool for security professionals dealing with various systems.
- Portable Efficiency: The 5-inch TFT LCD monitor provides a large, clear display for easy viewing in any environment, while the tester's compact size and lightweight design make it easy to carry from one site to another.
- Intuitive Operation: Designed with the user in mind, the VisionTech Pro features user-friendly interfaces and functions, allowing for quick and efficient camera testing without the need for extensive training.
- Reliable Power Supply: Equipped with a durable battery, this tester ensures extended operational times, making it perfect for long days in the field. It also offers power output for camera testing, eliminating the need for separate power sources.
Your Go-To Installation Partner: The VisionTech Pro is more than just a tool; it's your partner in ensuring that every security camera installation or maintenance task is completed with precision and efficiency. By offering a combination of high-resolution testing, wide compatibility, and portable convenience, this CCTV camera tester empowers security professionals to optimize system performance and reliability.
Invest in the VisionTech Pro today and experience a new level of clarity and control in your security camera installations. Embrace the future of security system maintenance with this indispensable tool by your side.

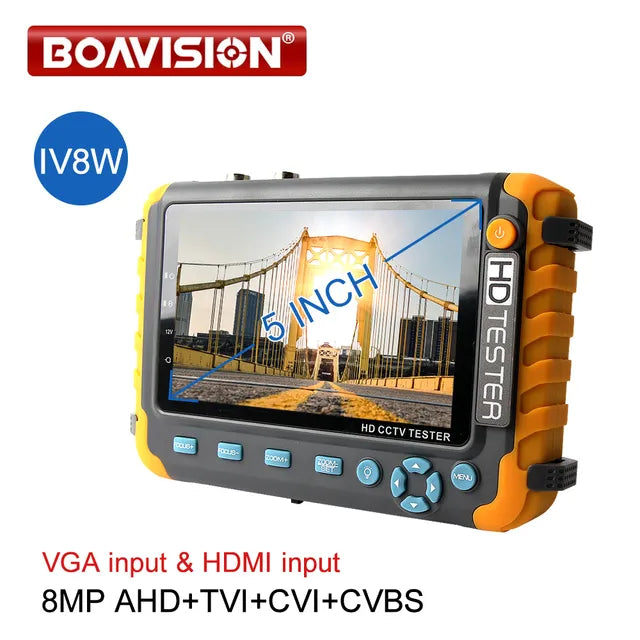

HDMI-compatible VGA INPUT AHD TVI CVI ANALOG SECURITY CAMERA TESTER MONITOR

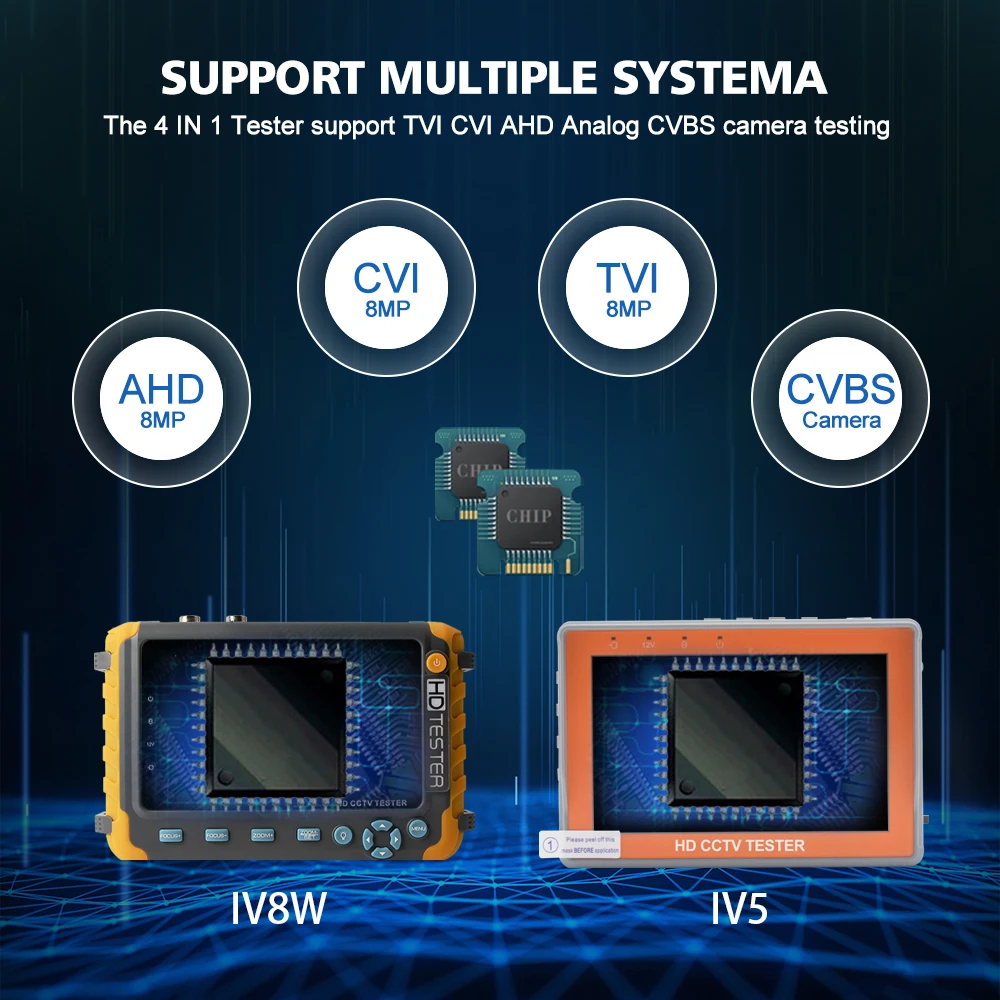

The 4 IN 1 Tester support max up to 8MP TVI CVI AHD Analog CVBS camera testing

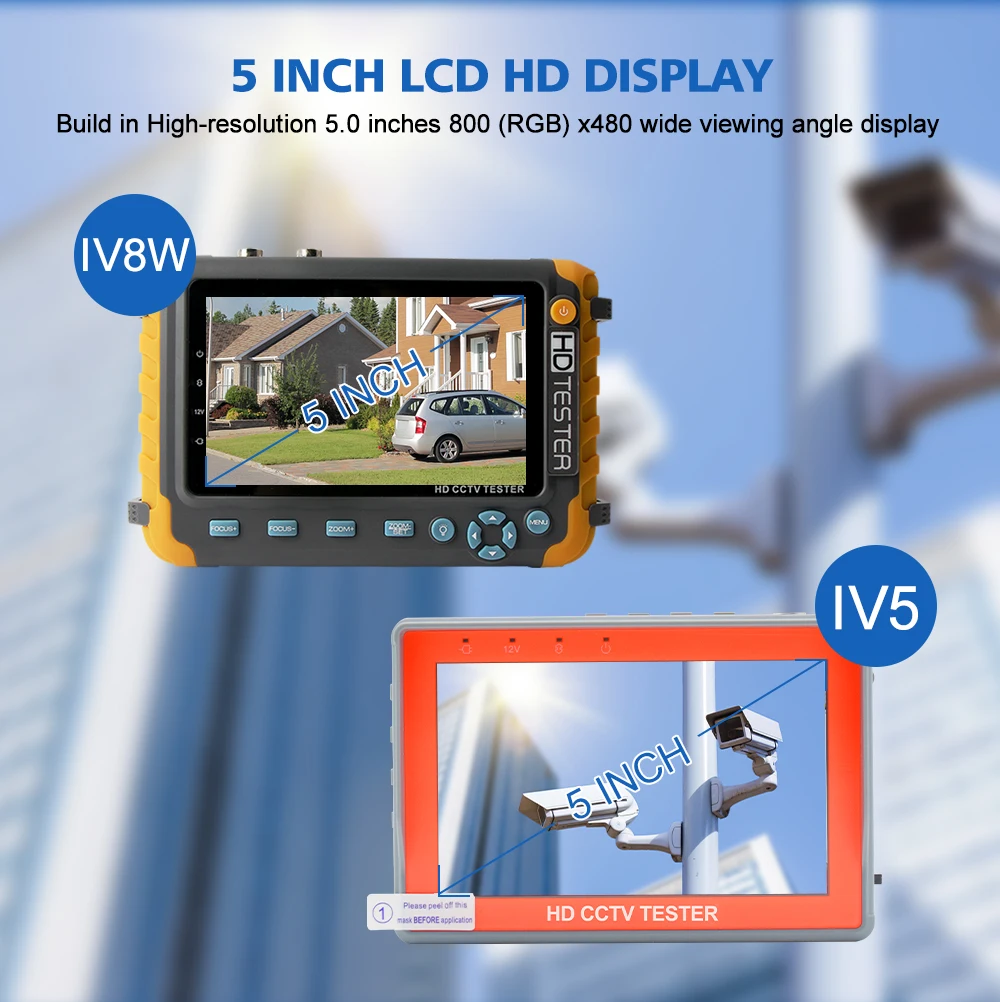

Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display
Functional connection diagram
5.0 inch TFT-LCD,800 (RGB) x 480 resolution
After charging 3-4 hour, working time lasts 11 hours
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button,easy to operate.

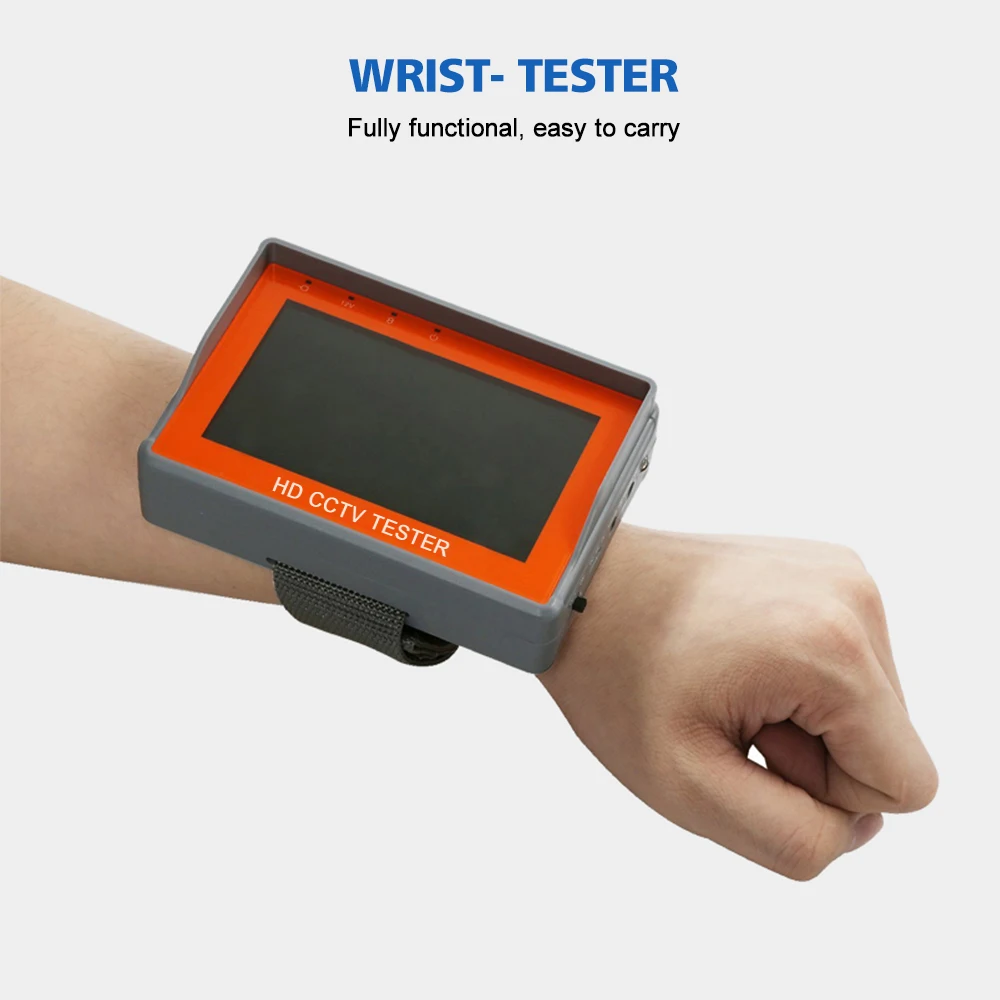

Portable CCTV Tester
Easy to carry and operation
The 4 IN 1 Testerl support TVI CVI AHD Analog CVBS camera testing, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc;
Product overview:
The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, high precision digital multi-meter, LED lamp etc.
Key feature
* Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,
* Support PAL/NTSC standard video signal. CVBS testing.

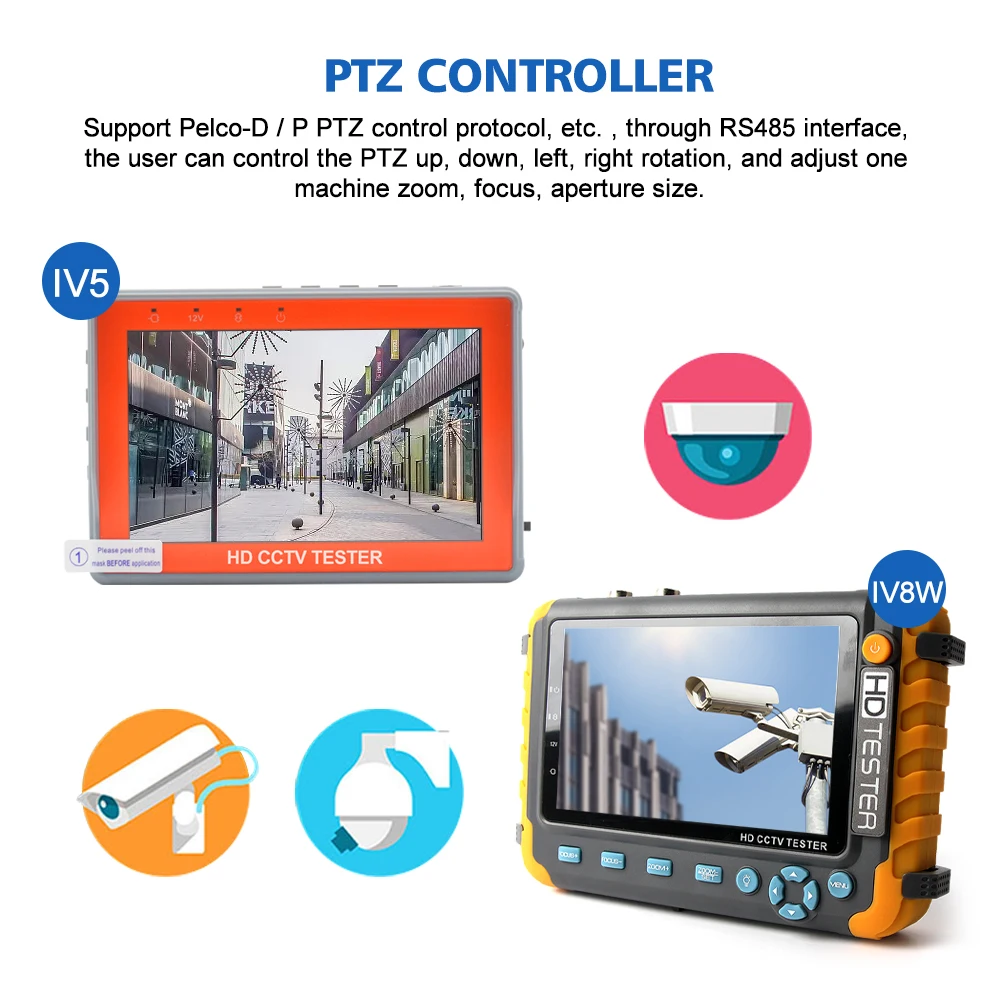

* PTZ controller
Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
* Image generator
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
* DC12V 1A output power
Power the camera with DC12V (1A) power from the tester.
* Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.
* Improvement cable test
UTP cable, telephone cable etc order and connectivity test, can save testing report
* VGA/HDMI input
Support 1920X1080VGA/HDMI 1.0 video input, HDMI or VGA is optional via switch.
* TVI camera test
HD TVI video surveillance testing, support 5MP 25,30fps, 8MP(4K) 15fps. When TVI signal input, the tester will display HD TVI camera image.
* CVI camera test
HD TVI video surveillance testing, support 5MP 25,30fps,8MP(4K)15fps. When TVI signal input, the tester will display HD TVI camera image.
* AHD camera test
HD video surveillance testing, support AHD 2.0 version, 5MP25,30fps,8MP(4K)15fps. When AHD signal input, the tester will display the AHD camera image.

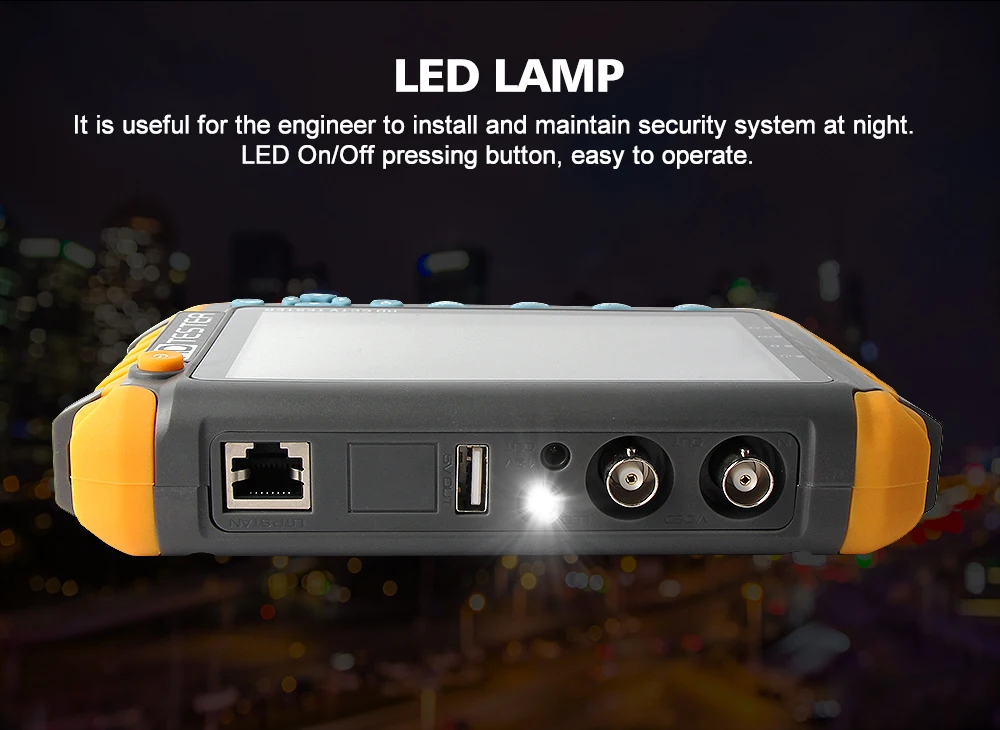

* LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
Specification
|
Model |
MATC-IV8W |
|
LCD screen |
5.0 inch TFT-LCD, 800（RGB）x 480 resolution |
|
Video test |
NTSC/PAL (Auto adapt) |
|
LCD adjustment |
Brightness, Contrast, Saturation adjustable |
|
Video IN/OUT |
1 channel BNC Input & 1 channel BNC Output |
|
VGA/HDMI input |
Max support 1920X1080 video input |
|
PTZ Controller |
Support RS485 |
|
PTZ Protocol |
Compatible with protocols PELCO-D/P, |
|
Baud Rate |
Baud Rate: 600,1200, 2400, 4800, 9600, 14400bps |
|
Color bar generator |
Support both PAL / NTSC format’s standard color bar output |
|
(Red, Green, Blue, White, Black, Grey) and testing image output |
|
|
UTP Cable Test |
Display UTP cable connection status , cable type and |
|
the sequence of wires as well as read the number of the test box. |
|
|
DC12V power output |
Output DC12V1A power for camera |
|
Audio input test |
1 channel audio signal input |
|
Coaxial HD test |
|
|
TVI test |
1 channel TVI input(BNC interface), |
|
support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps, 5MP 25 / 30fps/8MP(4K)15fps |
|
|
CVI Test |
1 channel TVI input(BNC interface), |
|
support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps, 5MP 25 / 30fps/8MP(4K)15fps |
|
|
AHD Test |
1 channel AHD input (BNC interface）, |
|
support AHD 2.0 version, 720p 25 / 30fps, 1080p 25 / 30fps, 5MP 25 / 30fps/8MP(4K)15fps |
|
|
POWER |
|
|
Power Adapter |
DC 5V（1.5A） |
|
Battery |
Built-in 18650 2600mA battery X 2, |
|
After charging 3-4 hour, working time lasts 11 hours |
|
|
General |
|
|
Language |
English and Chinese optional |
|
Working Humidity |
30%-90% |
|
Dimension |
194mm x 112mm x 48mm / 540 |
Packing List
1* HD 8MP Coaxial Tester
1* Adapter DC5V 1.5A（with USB cable)
2* International Standard 18650 2600ma battery
1* BNC cable
1* RS485 connector
1* Power output conversion cable
1* Audio cable
1* Lanyard
1* Tool bag
1* Instruction Manual
